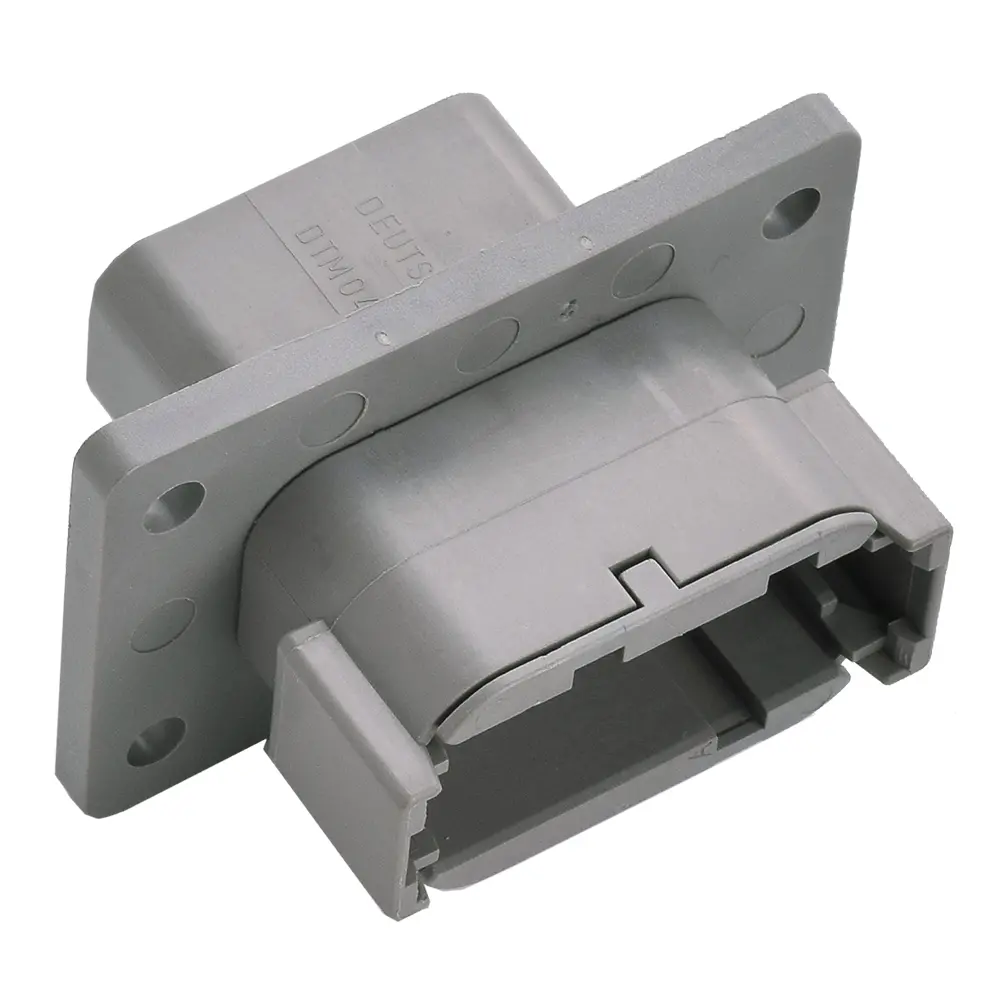

TE Connectivity/DEUTSCH DTM04-12PA-L012 12-way DTM Receptacle housing. Compatible with stamped and solid barrel, size 20, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.
you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DTM04-12PA-L012 Details
- Wire Range: 20-24 AWG (0.2-0.5 mm²)*; 18-16 AWG (0.8-1.3 mm²) with the 18-16 AWG solid contacts listed below
- Housing Color: Gray
- Contact Size: 20 (each terminal is rated for 7.5 amps.)
- Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
- Modification: L012 (Welded flange for panel mounting)
- Overall Width: 2.170 (55.12)
- Overall Length: 1.720 (43.69)
- Overall Height: 1.400 (35.56)
- Flange Dimensions: 2.170 x 1.400 (55.12 x 35.56), .250 (6.35) thick; 4X Ø.170 (4.32) holes on 1.770 x .940 (44.96 x 23.88) centers; 6-32 [M4] screws
Solid Contacts
* 18 AWG wire can be used if the wire is stripped perfectly.
Technical Information
- The Specifications Tab lists technical data as well as other helpful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
- DTM series connectors are compatible with Amphenol ATM series connectors and related accessories.
Notes
- Please see the Mating Connectors, Tools, Wedgelocks, Contacts, Boots, and Clips tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, boots, and mounting clips.
