Raychem 202K232-25-0 is a double reduction boot where the J (shrunk) end is much smaller than a 202K132-25-0; this boot shines when used on the back of DT and DTM connectors to provide strain relief as well as sealing the back of the connector housing; see link below for our Deutsch DT/DTM shrink boot pictorial
Raychem heat shrink boots used in conjunction with Raychem DR-25 sleeving and M22759/32 Tefzel Wire provides a proper motorsport/military-grade wiring loom. Need to seal your shrink boots to your tubing? by far, the best choice is ResinTech RT125 Adhesive.

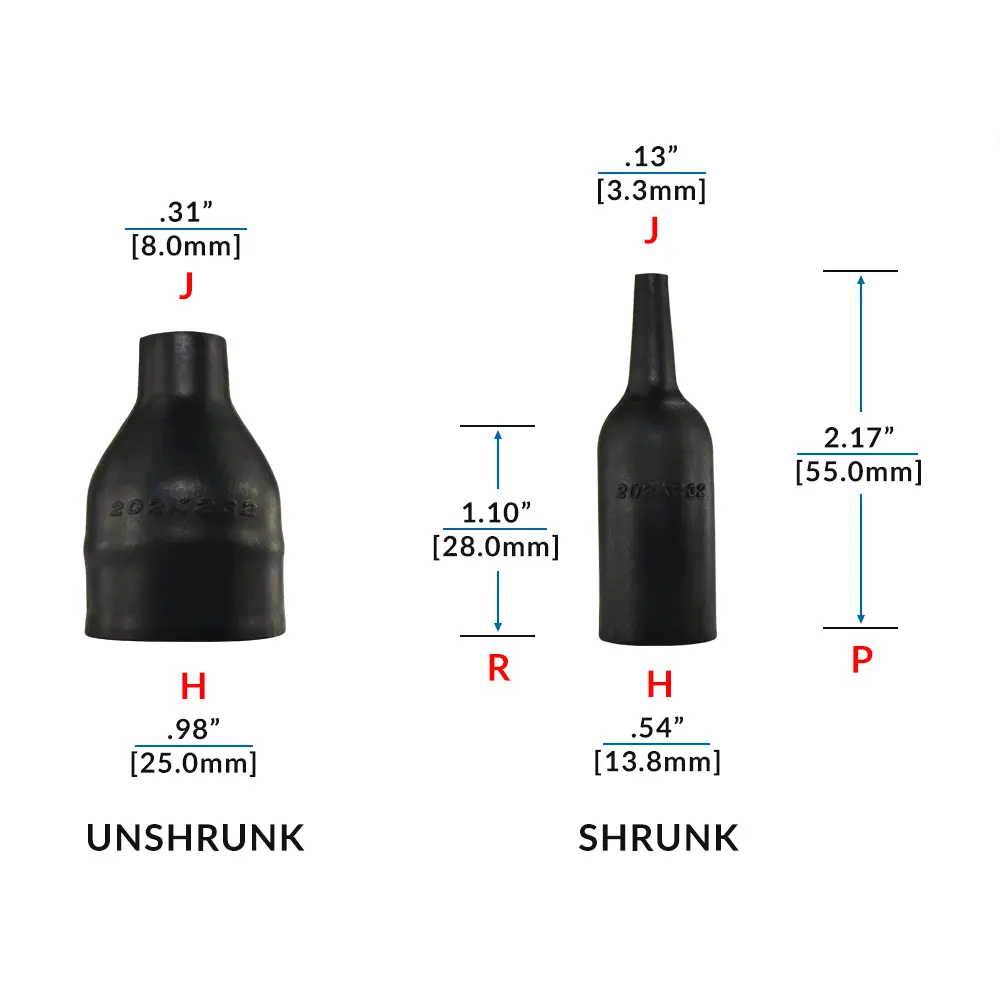

| Raychem 202K232-25-0 Boot Dimensions |
 |
Part
Number | (H) Big End | ( J) Small End | P |
UN
SHRUNK | SHRUNK | UN
SHRUNK | SHRUNK | Total
Length |
| 202K232-25-0 | 30mm
[1.18"] | 14.2mm
[.56"] | 30mm
[1.18"] | 5.9mm
[.23"] | 55mm
[2.17"] |
| Motorsport/Military-Grade Heat Shrink Tubing |
| DR-25 Yellow Print | DR-25 White Print | V25 No Print |
