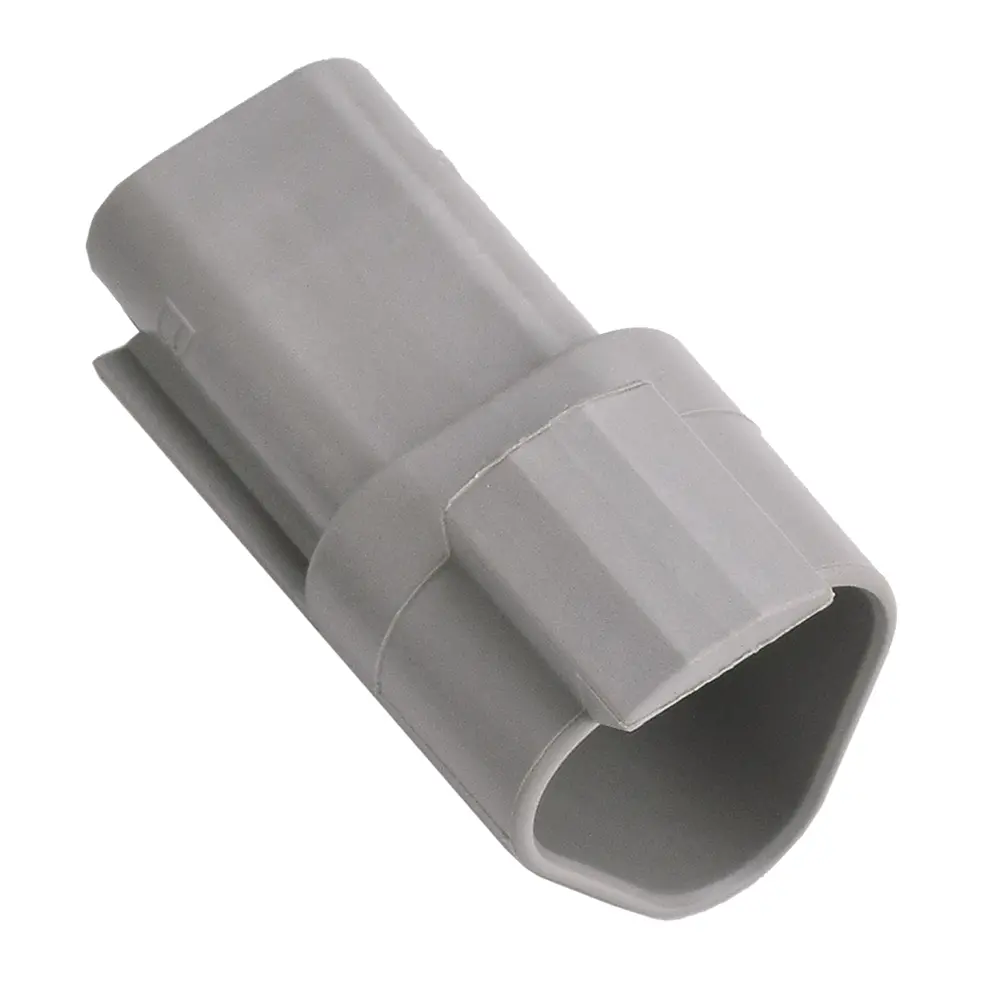

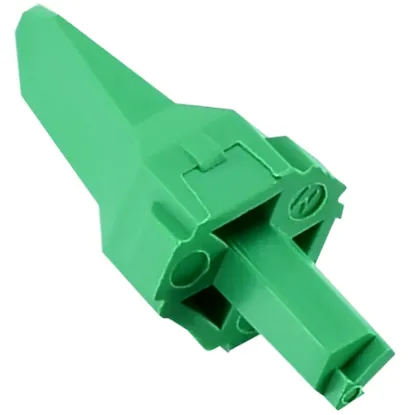

TE Connectivity/DEUTSCH DT04-3P 3-way DT Receptacle housing. Compatible with stamped and solid barrel, size 16, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.
you can now configure Deutsch DT series connectors by using our Deutsch DT Series Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DT04-3P Details
- Wire Range: 14-20 AWG (0.5-2 mm)
- Housing Color: Gray
- Contact Size: 16 (each terminal is rated for 13.0 amps.)
- Keyway: A (this is typically indicated by the gray color of the housing, though some exceptions to this rule exist).
- Overall Width: .832 (21.13)
- Overall Length: 1.698 (43.13)
- Overall Height: .973 (24.71)
Connector Boots

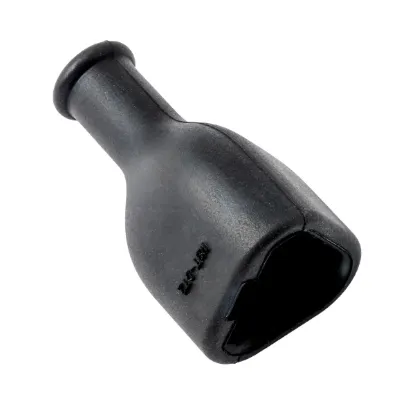

- Straight Rubber BootRBT-DT3 (This boot utilizes a friction-fit design for a secure, snug connection at the back of the connector.)
- Straight Shrink Boot202K232-25-0
Technical Information
- The Specifications Tab lists technical data as well as other helpful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
- DT series connectors are compatible with Amphenol AT series connectors and related accessories.
Notes
- Please see the Mating Connectors, Tools, Wedgelocks, Contacts, Boots, and Clips tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, boots, and mounting clips.
