ASU,3 Way,Inline,SKT,A Key,Yellow - ASU103-03SA-HE
ASU,3 Way,Inline,SKT,A Key,Yellow - ASU103-03SA-HE
Questions about this part?

Fitment, mating parts, tooling, certs: a wire specialist will get back to you.

ASU103-03SA-HE Deutsch ASU Series 3-Way Receptacle Kit

Deutsch
Item No. ASU103-03SA-HE
$43.20 / EA
Features & details

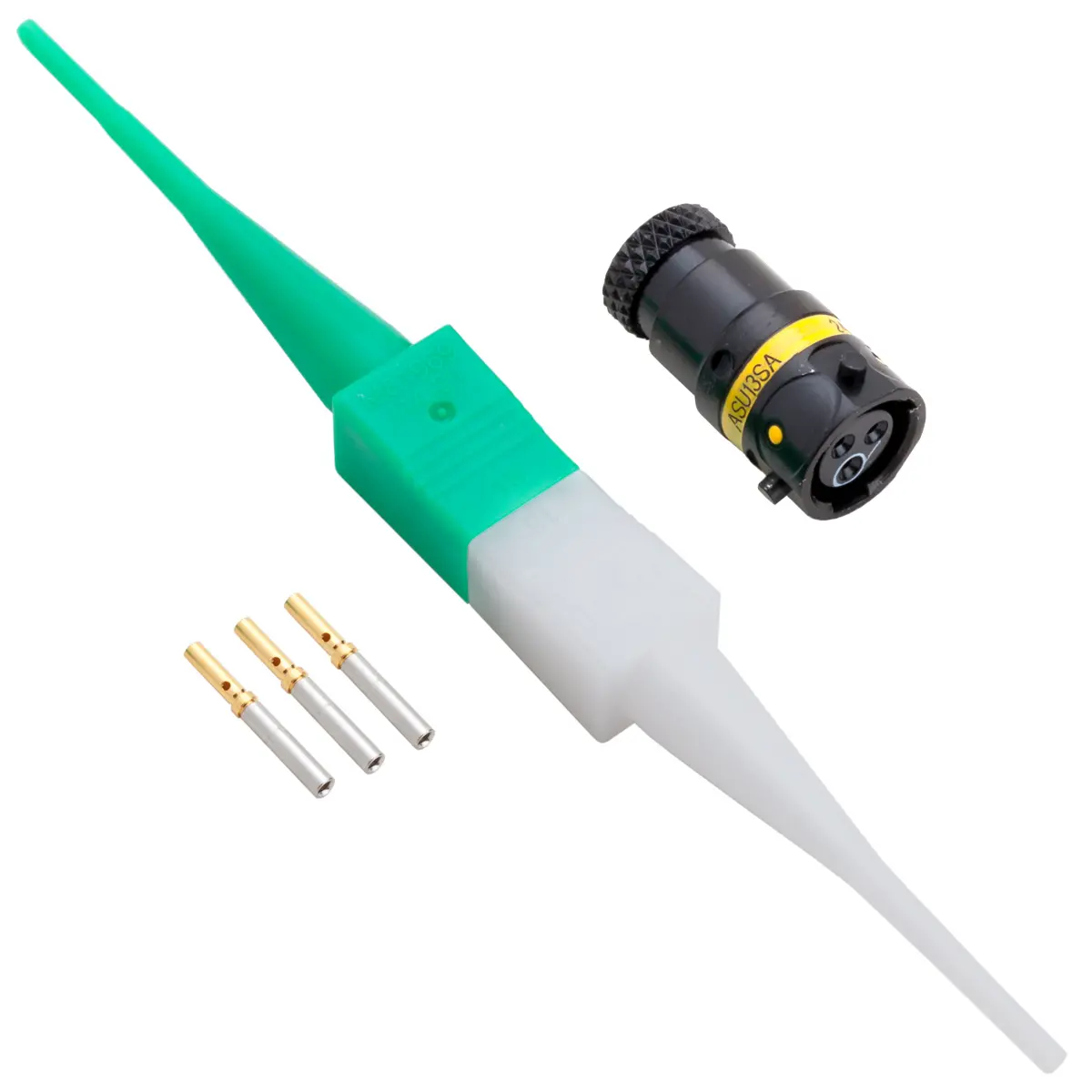

Deutsch Autosport ASU103-03SA-HE 3-way inline receptacle connector kit with socket (female) contacts in the A (yellow) key configuration.

The connector's yellow band identifies the A keyway (only the same color keyways will mate together)

Kit Includes
  • (1) 3-Way Inline Receptacle Connector Body with Screen and Boot Termination Feature.
  • (3) Size 22 socket (female) contacts (26-22 AWG, 5 A each) 604984
  • (1) Insert/Removal Tool M81969/14-01
Required Crimp Tooling
Shrink Boots
Technical Information
  • The Specifications Tab lists technical data as well as other helpful information.
  • The Documents section lists CAD models, technical drawings, and catalog pages when available.
Notes
  • Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
Product specification
Keyway A (Yellow)
Series / Range ASU
Shell Size 3
Wire Range (AWG) 26-22
Contact Gender Socket (Female)
Shell Style Inline Receptacle
Shell Plating Zinc (Black)
Replacement Contacts 604984
Insert Arrangement 46084
No. Of Positions 3
Contact Size 22
90º Shrink Boot 224W221-25-G03-0
Connector O.D. .358" (9.1 mm)
DMC Crimp Frame M22520/2-01
Current Rating Per Contact 5 A
Filler Plug 600300-22
Insert / Removal Tool M81969/14-01
MFG. TE Connectivity
Mating Plug Connector ASU603-03PA-HE
Protective Cap 605684
DMC Positioner / Turret K1494
Shell Material Aluminum
Straight Shrink Boot 204W221-25-G03-0
Termination Style Crimp
