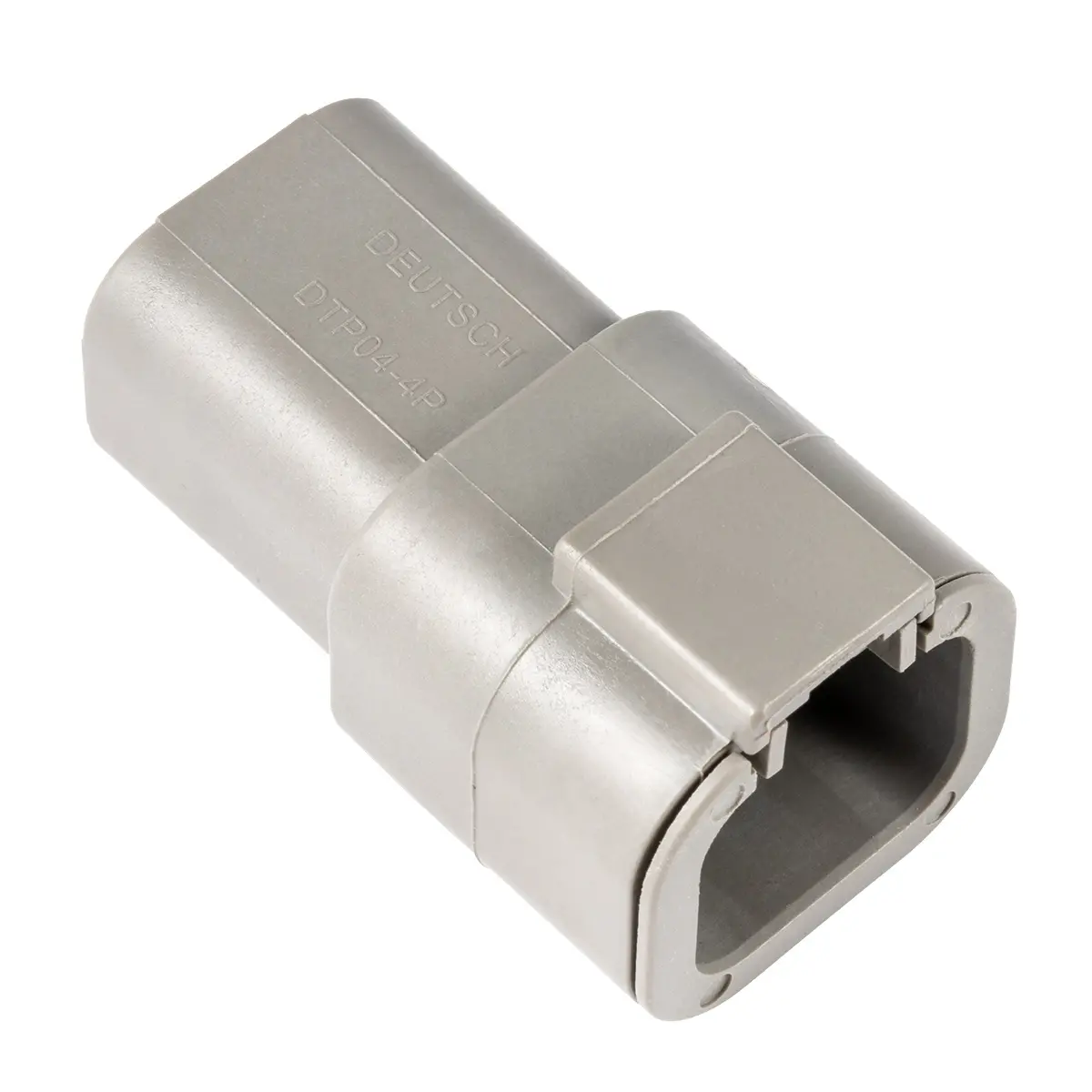

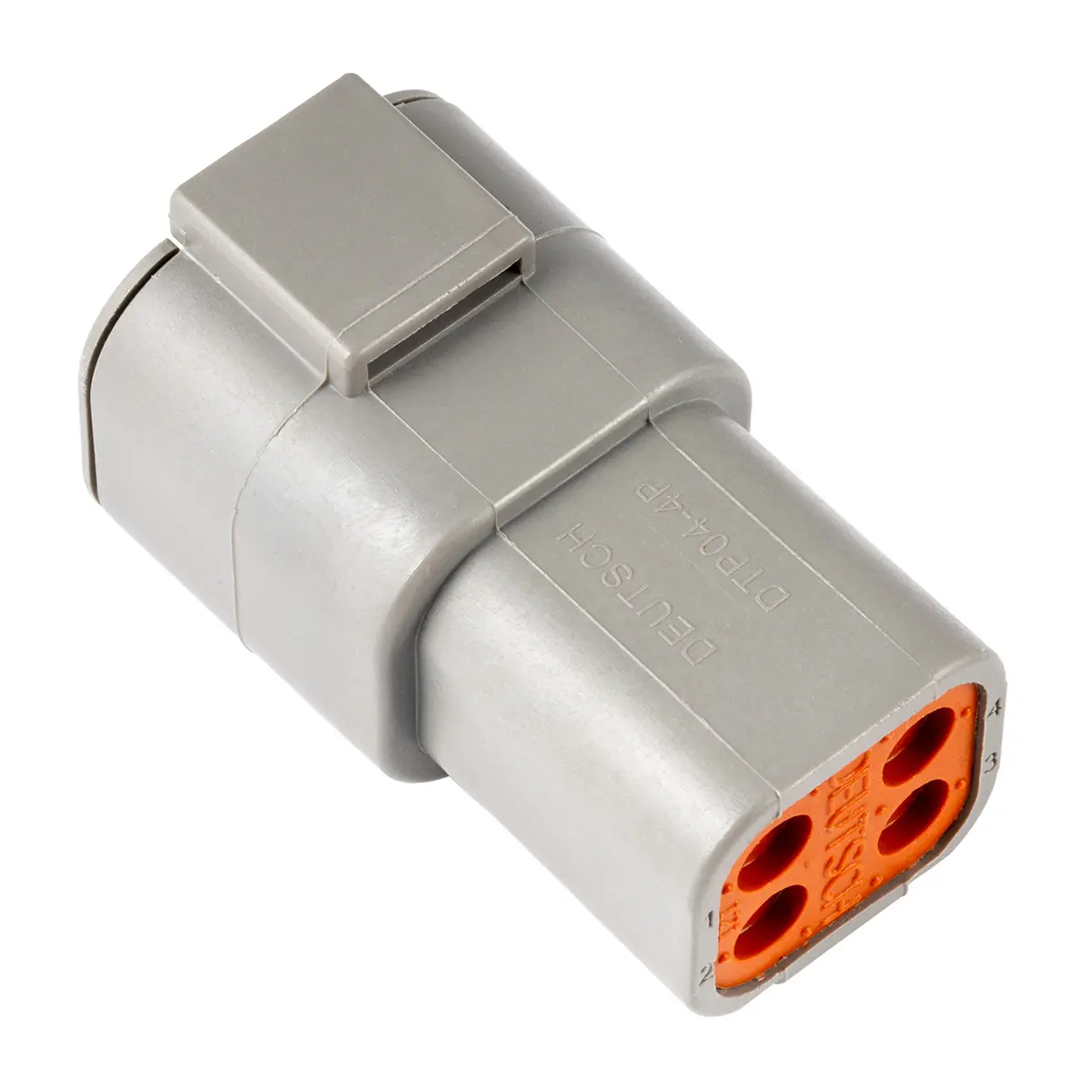

TE Connectivity/DEUTSCH DTP04-4P 4-way DTP Receptacle housing. Compatible with stamped and solid barrel, size 12, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.
you can now configure Deutsch DTP series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DTP04-4P Details
- Wire Range: 10-14 AWG (5.0-2.0 mm²)
- Housing Color: Gray
- Contact Size: 12 (each terminal is rated for 25 amps.)
- Overall Width: 1.060 (26.92)
- Overall Length: 1.861 (47.27)
- Overall Height: 1.048 (26.62)
Solid Contacts
* Crimp the 12-10 AWG contact with the 18860 crimp tool (recommended). The rear collar of the tool must be adjusted slightly to properly locate the contact in the correct position prior to crimping. The HDT-48-00 crimp tool is not compatible with this contact.
Technical Information
- The Specifications Tab lists technical data as well as other helpful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
- DTP series connectors are compatible with Amphenol ATP series connectors and related accessories.
Notes

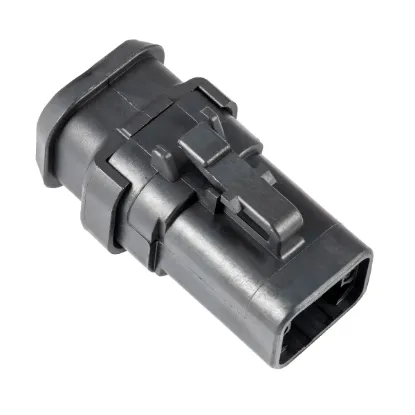

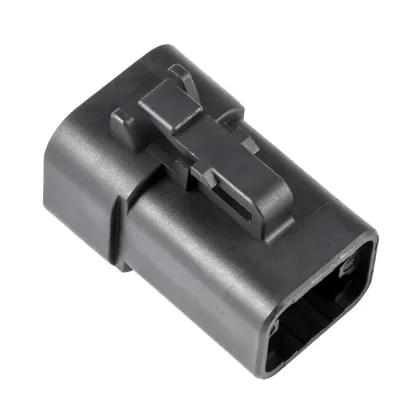

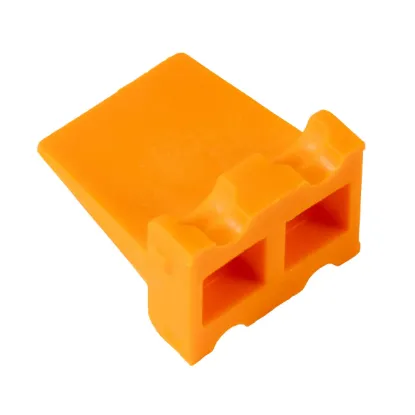

- Please see the Mating Connectors, Tools, Wedgelocks, Contacts, and Clips tabs to purchase the mating connector, crimp tools, wedgelocks, contacts, and mounting clips.
