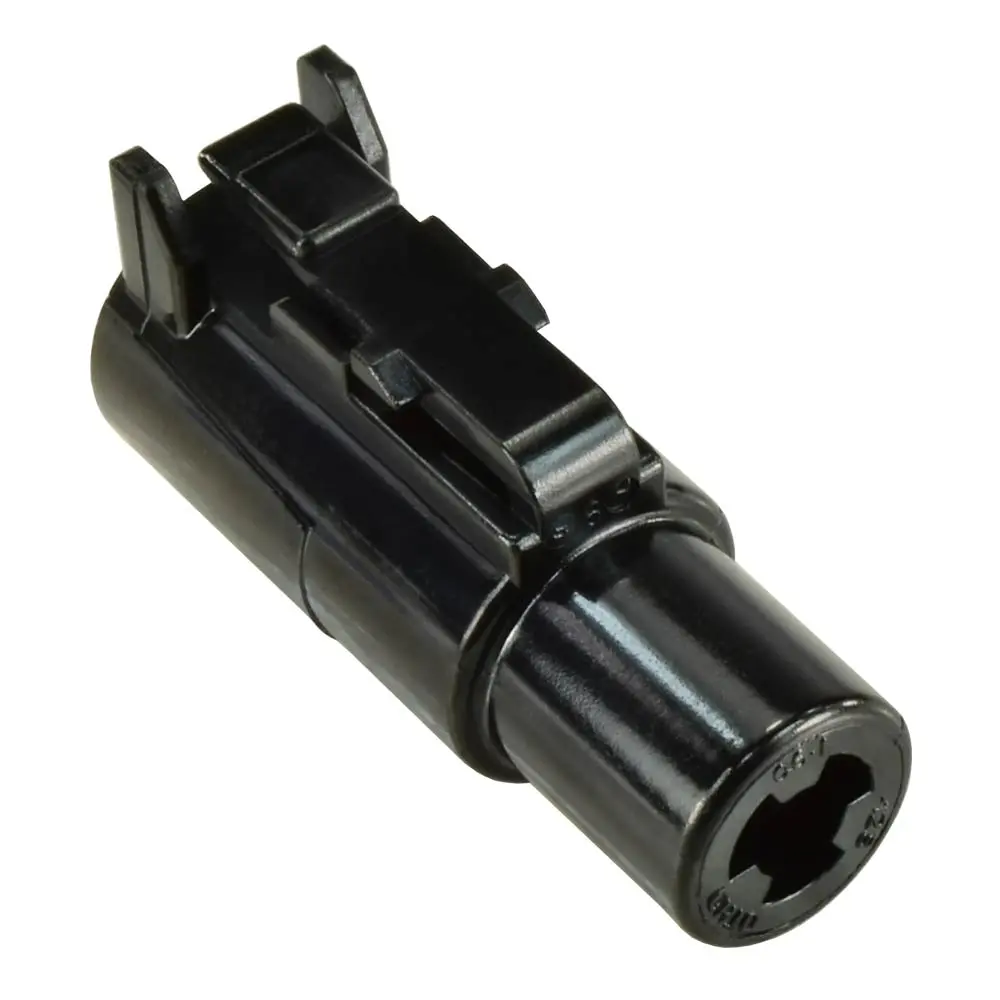

TE Connectivity/DEUTSCH DTHD06-1-12S single-contact DTHD plug housing for one size 12, socket (female) contact, rated 25 amps. DTHD connectors carry high-current circuits in a sealed, latching, single-way housing that can be mounted or used in-line. No wedgelock is required. Please see below for more specific details.
you can now configure Deutsch DTHD series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
DTHD06-1-12S Details
- Wire Range: 14-12 AWG (2.0-3.3 mm²)
- Wire Insulation O.D.: .134-.170 (3.40-4.32)
- Housing Color: Black
- Material: PEI housing, VMQ (silicone) interface seal
- Contact Size: 12 (rated for 25 amps.)
- Positions: 1 (single contact, no wedgelock required)
- Operating Temperature: -55°C to +125°C
- Overall Width: .570 (14.48)
- Overall Length: 1.498 (38.05)
- Overall Height: .771 (19.58)
Technical Information
- The Specifications Tab lists technical data as well as other helpful information.
- The Documents section lists CAD models, technical drawings, and catalog pages when available.
- DTHD series connectors are compatible with Amphenol ATHD series connectors and related accessories.
Notes

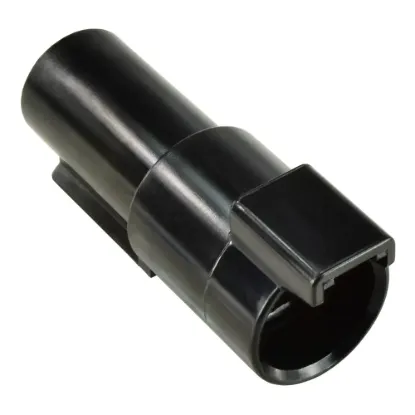

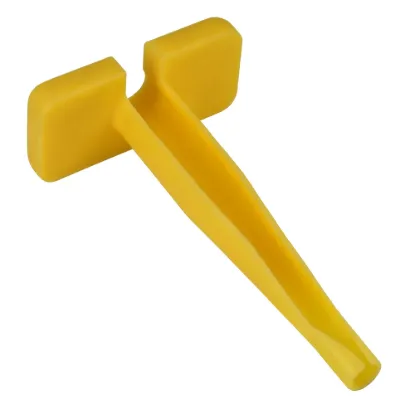

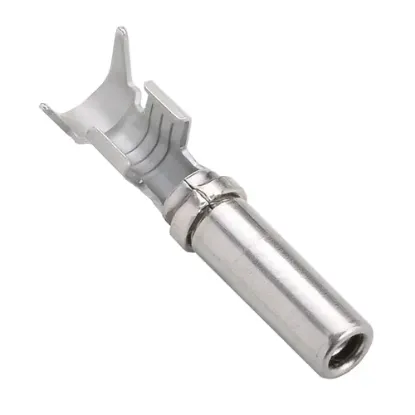

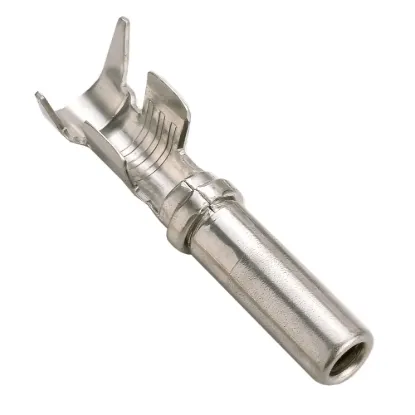

- Please see the Mating Connectors, Tools, and Contacts tabs to purchase the mating connector, crimp tools, and contacts.
