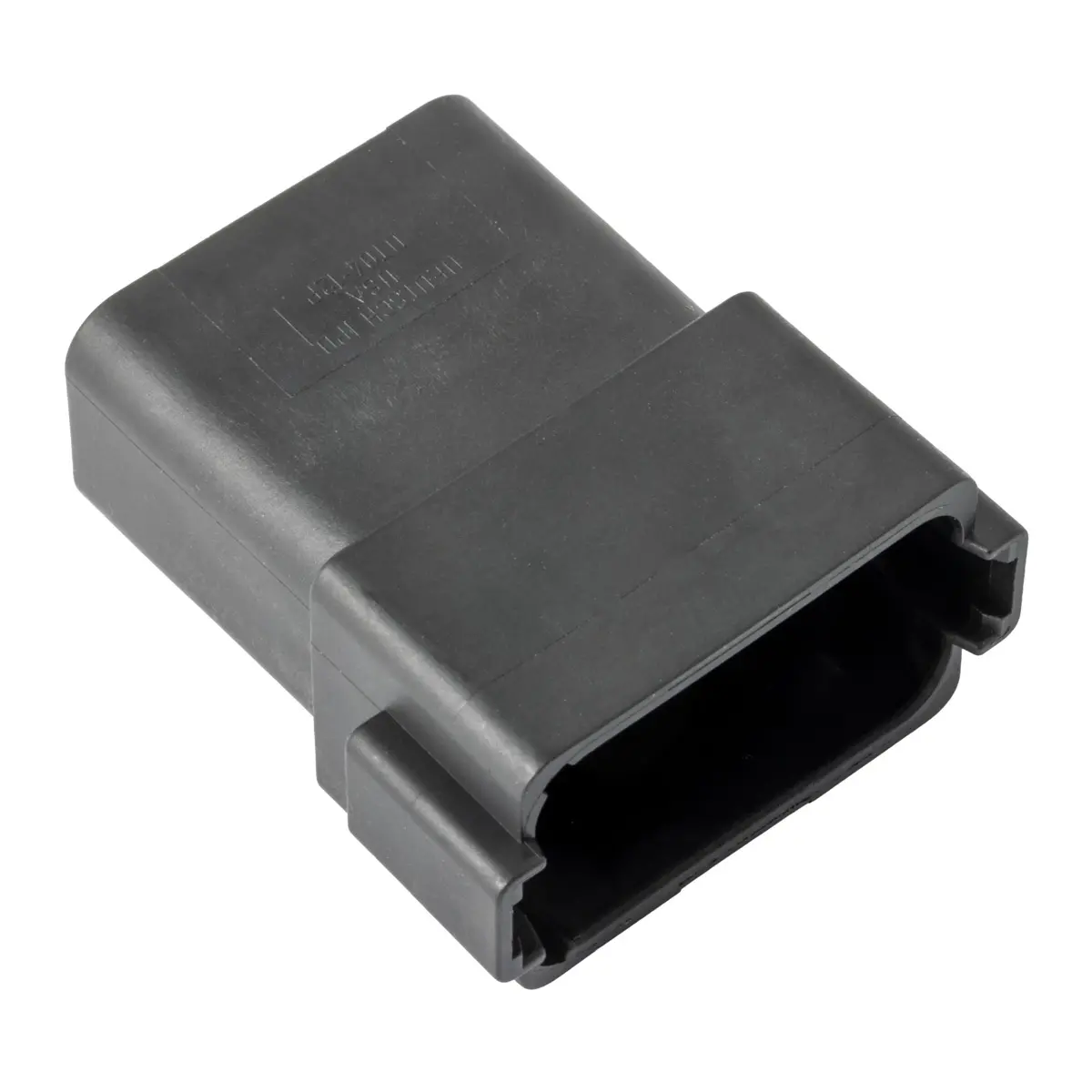

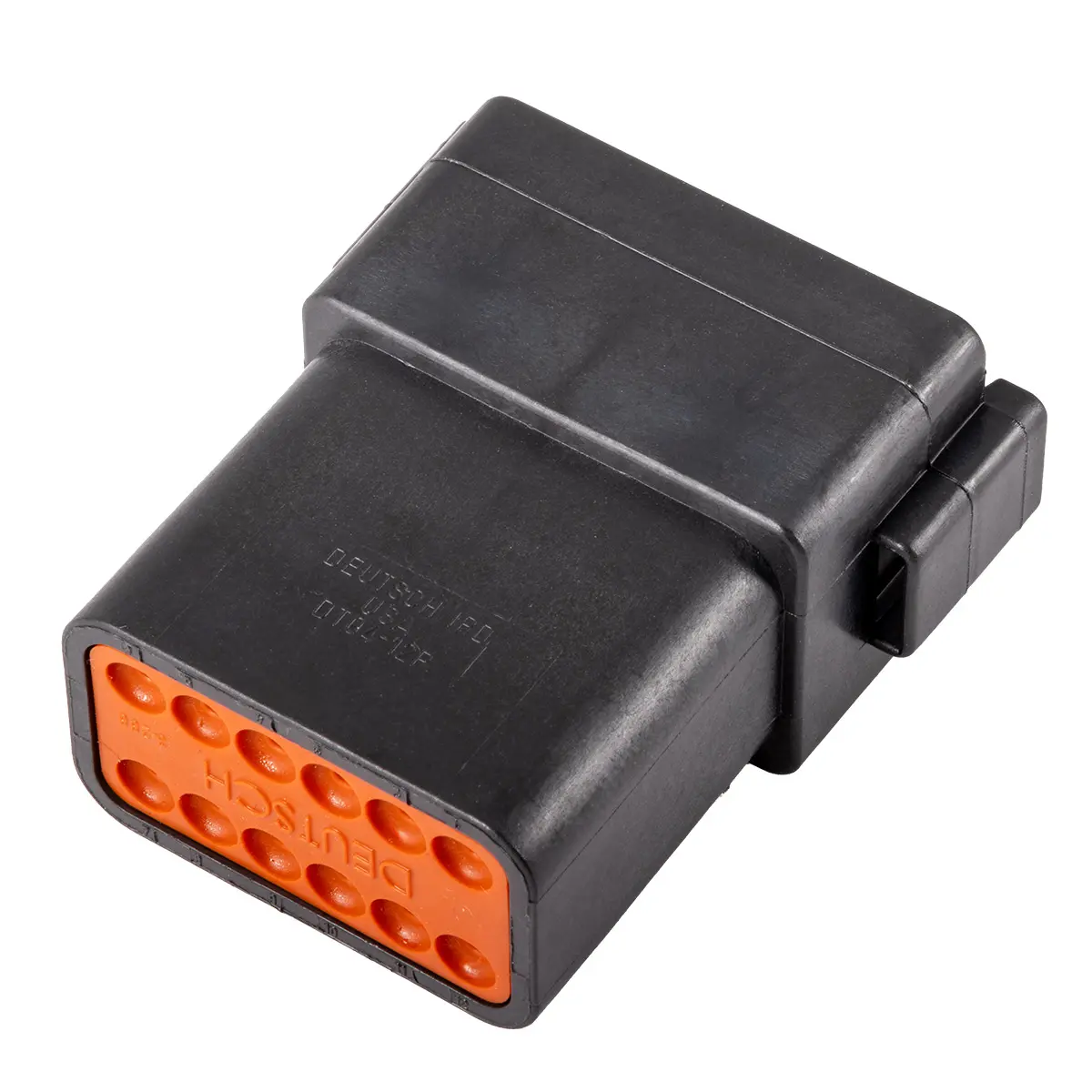

DT04-12PB Deutsch DT Series 12-Way Receptacle Connector

TE Connectivity/DEUTSCH DT04-12PB 12-way DT Receptacle housing. Compatible with stamped and solid barrel, size 16, pin (male) contacts. This connector housing requires a wedgelock, contacts, and a mating connector. Please see below for more specific details.

you can now configure Deutsch DT series connectors by using our Deutsch DT Series Kit Builder Tool

To purchase a master kit, also known as a shop kit, please visit our Master Kits Page

DT04-12PB Details:

Wire Range: 14-20 AWG (0.5-2 mm)
Housing Color: Black
Contact Size: 16 (each terminal is rated for nan amps.)
Keyway: B (this is typically indicated by the black color of the housing, though some exceptions to this rule exist).
Overall Width: 1.597 (40.56)
Overall Length: .876 (22.25)
Overall Height: 1.808 (45.92)

Connector Boots:

Straight Rubber Boot: RBT-DT12 (This boot utilizes a friction-fit design for a secure, snug connection at the back of the connector.)
Straight Shrink Boot: 202A142-25-0

Mating Connector(s):

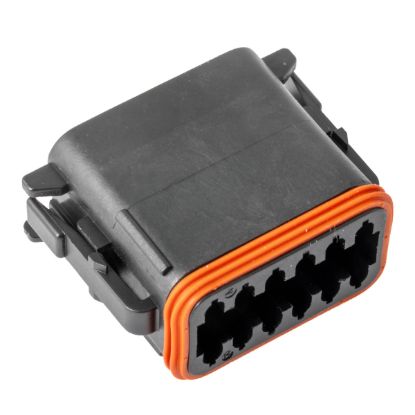

DT06-12SB

Required Wedgelock:

W12P

Solid Contacts:

20-16 AWG Nickle: 0460-202-16141
20-14 AWG Nickle: 0460-215-16141
20-16 AWG Gold: 0460-202-1631
20-14 AWG Gold: 0462-215-1631

Stamped Contacts:

20-16 AWG Nickle: 1060-16-0622
14-18 AWG Nickle: 1060-16-0122

Technical Information:

The Specifications Tab lists technical data as well as other helpful information.
The Documents section lists CAD models, technical drawings, and catalog pages when available.
DT series connectors are compatible with Amphenol AT series connectors and related accessories.

Notes:

Please see the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
