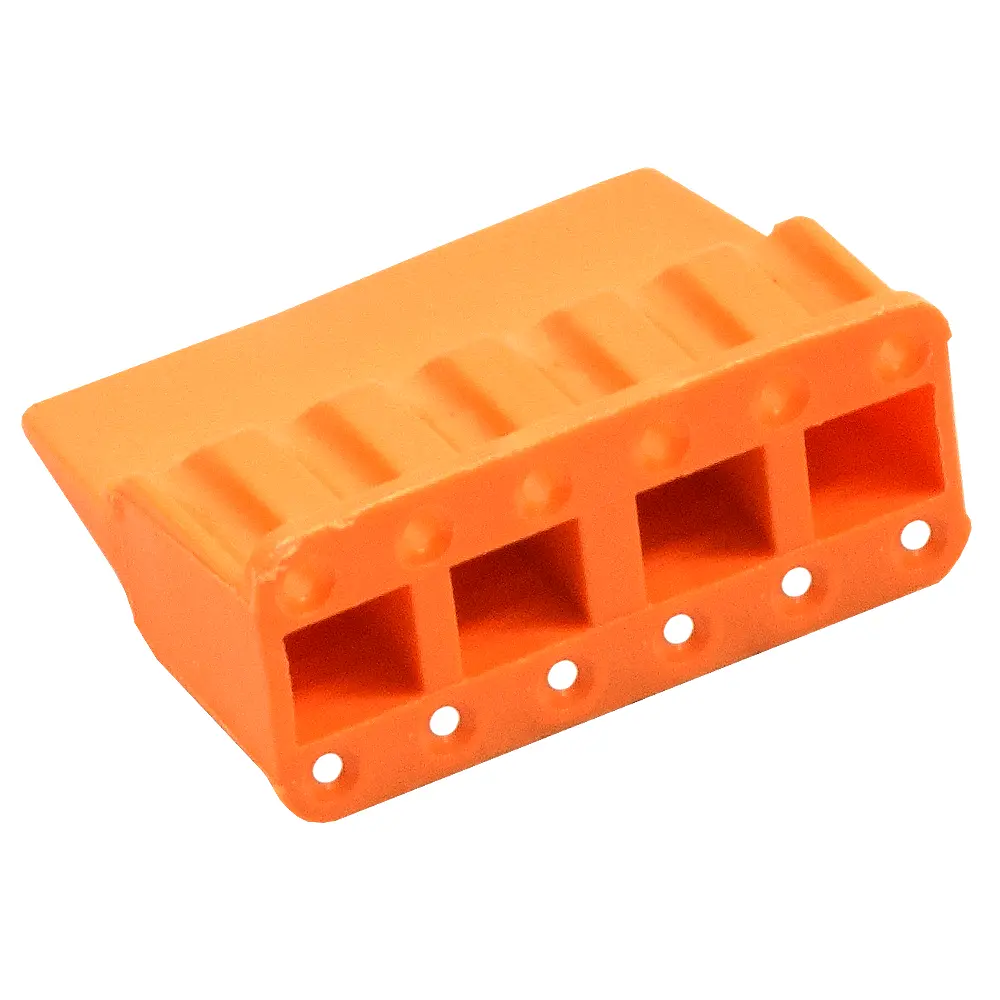

TE Connectivity/DEUTSCH WM-12S orange wedgelock (secondary lock) for 12-way DTM plug housings. After the socket (female) contacts are crimped and pushed into the housing, the wedgelock snaps in from the front to lock and align them. Every DTM housing needs one, and it is sold separately.
you can now configure Deutsch DTM series connectors by using our Deutsch Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
WM-12S Details
- Series: Deutsch DTM
- Positions: 12
- Fits: 12-way DTM plug housings (DTM06 series)
- Color: Orange
- Material: PBT GF (glass-filled polyester)
- Contact Size: 20, socket (female)
- Operating Temperature: -55°C to +125°C
Removal
- To remove the wedgelock (for example to service a contact), use the DT-RT1 wedgelock removal tool.
Technical Information
- The Documents section has TE's customer drawing and 3D CAD model for this part.
- DTM series parts are compatible with Amphenol ATM series connectors and related accessories.
