Deutsch ASC Composite Series

Deutsch ASC composite series constructed in a Mil-Spec approved rugged thermoplastic housing available in a 6-way configuration only.

Specifications:

• No. Of Positions: 6
• Shell Size: 5 (rectangle)
• Contact Size: 22-28
• Wire Range: 30-2 ga.
• Built In Shrink Boot Lip

Housing Types:

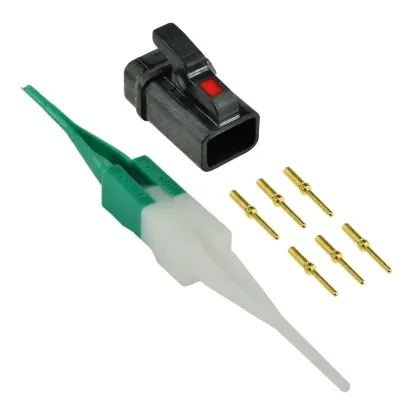

• Plug ASC6: Male connector available in either pin or socket. Mates to ASC1

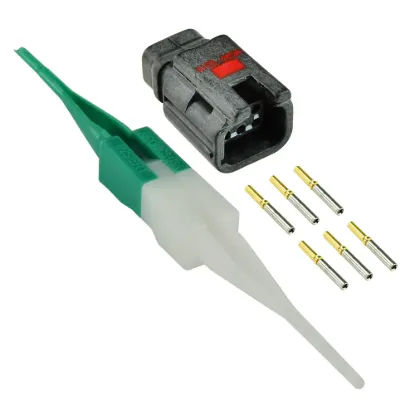

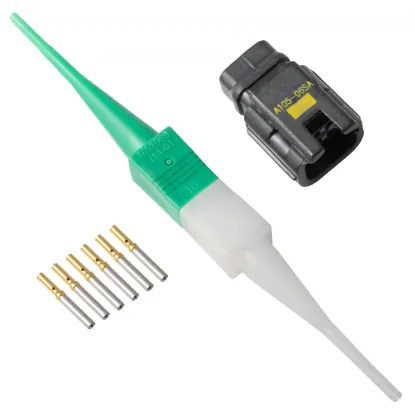

• Inline Receptacle ASC1: Female inline receptacle available in either pin or socket. Mates to ASC6

Shrink Boots:

• Straight Boot: 204W221-25-0
• 90º Boot: 224W221-25-0

Keyway Colors:

• N = Red
• A = Yellow
• B = Blue
• C = Orange
• D = Green
• E = Gray
