Deutsch AS Ultra Lite ASU Series Connectors

Deutsch Autosport ASU is a small, compact, and lightweight connector series available in a 3-way or 5-way version. ASU series is 30% lighter than the  ASL series mated pair.

Specifications:

• No. Of Positions: 3 or 5-way
• Shell Size: 3
• Contact Size: 22 (5 Amp), 24 (5 Amp)
• Wire Range: 30-22
• Environmentally sealed to IP67
• Built In Shrink Boot Lip
• Conductive Black Finish

Shrink Boot Options:

• Straight: 2204W221-25-G03
• 90º: 224W221-25-G03

Housing Types:

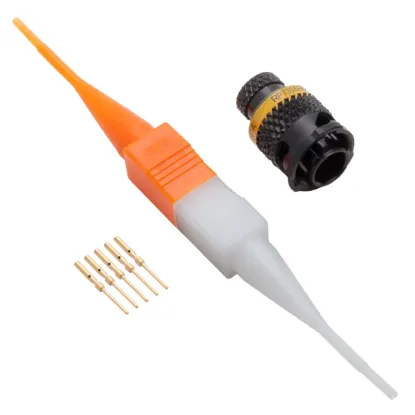

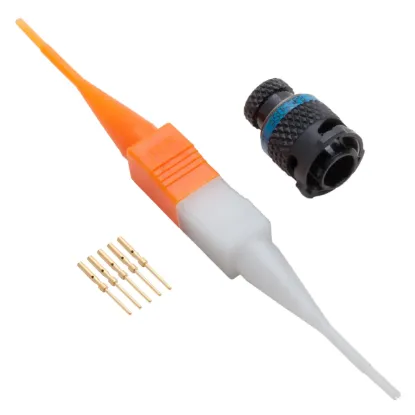

• Plug ASU6: Male connector available in either pin or socket. Mates to ASU1 or ASU0

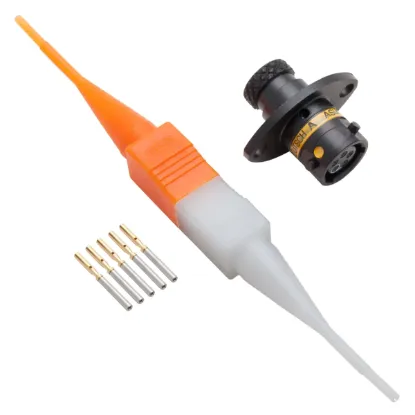

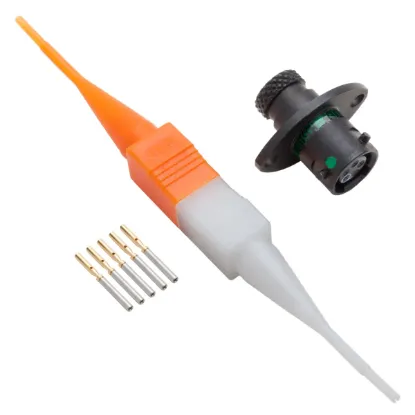

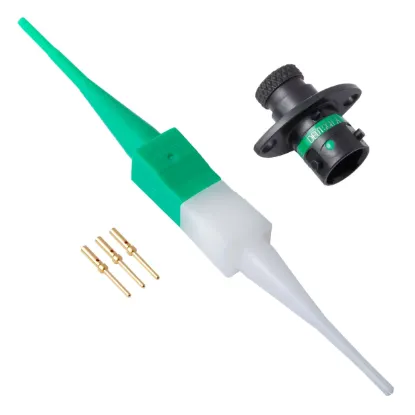

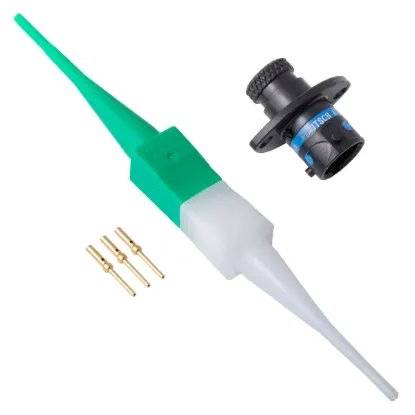

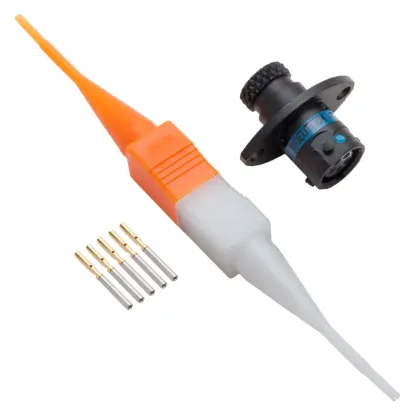

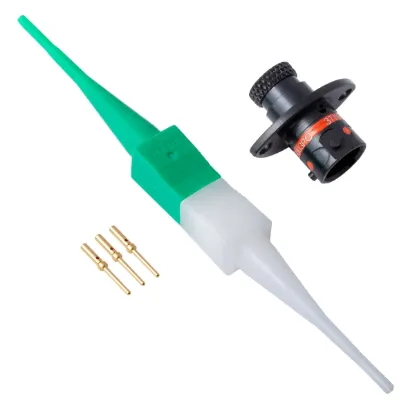

• Flange Receptacle ASU0: Female two-bolt oval flanged receptacle available in either pin or socket. Mates to ASU6
• Inline Receptacle ASU1: Female inline receptacle available in either pin or socket.Mates to ASU6

Keyway Colors:

• N = Red
• A = Yellow
• B = Blue
• C = Orange
• D = Green
• E = Gray
• U = Violet (Universal for test harness only available on plug side only)
