Deutsch AS
881 items
Sort by
AS,26 WAY,FLG,PIN,N KEY,RED
AS016-26PN
Deutsch
Deutsch
$104.94
Out of Stock - on backorder and will be dispatched once in stock.
AS,26 WAY,FLG,PIN,N KEY,RED

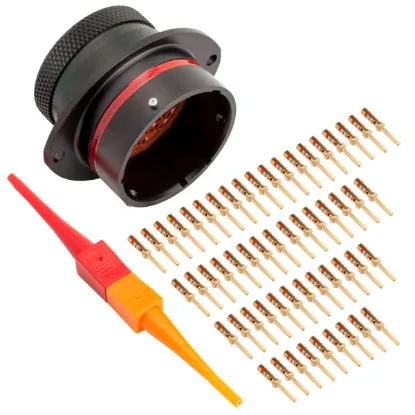

AS,55 WAY,FLG,PIN,D KEY,GREEN
AS016-35PD
Deutsch
Deutsch
$119.616
Out of Stock - on backorder and will be dispatched once in stock.
AS,55 WAY,FLG,PIN,D KEY,GREEN
Deutsch AS Autosport Series
Deutsch Autosport AS series the original motorsport connector, offers space and weight savings when compared to standard Mil-Spec connectors. The AS Series offers a wide range of arrangements up to 128 in 5 different keyways.
Specifications:
- No. Of Positions: 3-128
- Shell Size: 07-24
- Contact Size: 22 (5 Amp), 20 (7.5 Amp),16 (20 Amp)
- Wire Range: 26-16 Ga.
- Built In Shrink Boot Lip
- Conductive Black Finish
Housing Types:
- Plug AS6: Male connector available in either pin or socket. Mates to AS1 or AS0
- Flange Receptacle AS0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to AS6
- Inline Receptacle AS1: Female inline receptacle available in either pin or socket. Mates to AS6
Keyway Colors:
- N = Red
- A = Yellow
- B = Blue
- C = Orange
- D = Green
- U = Violet (Universal for test harnesses)
Shrink Boot Options:
| Shell | Straight Boot | 90 Degree Boot |
| 7 | 202K121 | 222K121 |
| 8 | 202K121 | 222K121 |
| 10 | 202K132 | 202K121 |
| 12 | 202K142 | 202K132 |
| 14 | 202K142 | 202K142 |
| 16 | 202K153 | 222K152 |
| 18 | 202K153 | 222K152 |
| 20 | 202K163 | 222K163 |
| 22 | 202K163 | 222K163 |
| 24 | 202K163 | 222K163 |
| 24 | 202K174 | 222K174 |
| Shell | Nut Plate | Gasket |
| 7 | AS-7 | GV-7 |
| 8 | AS-8 | GV-8 |
| 10 | AS-10 | GV-10 |
| 12 | AS-12 | GV-12 |
| 14 | AS-14 | GV-14 |
| 16 | AS-16 | GV-16 |
| 18 | AS-18 | GV-18 |
| 20 | AS-20 | GV-20 |
| 22 | AS-22 | GV-22 |
| 24 | AS-24 | GV-24 |
