Deutsch ASL Autosport Series

Deutsch Autosport ASL series is a compact 5-way size 6 shell connector for use in sensor applications. Prowireusa stocks all common configurations and keyway options.

Specifications:

• No. Of Positions: 5
• Shell Size: 6
• Contact Size: 23
• Wire Range: 22-26 Ga.
• Built In Shrink Boot Lip
• Conductive Black Finish

Shrink Boot Options:

• Straight: Raychem 204W221-25-0
• 90º: Raychem 224W221-25-0

Housing Types:

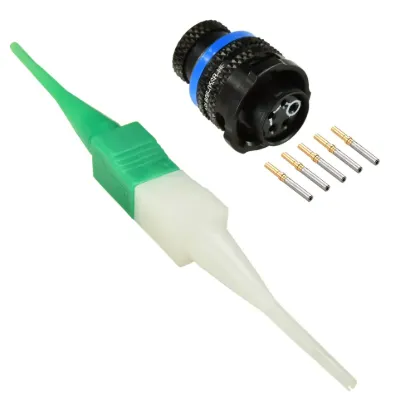

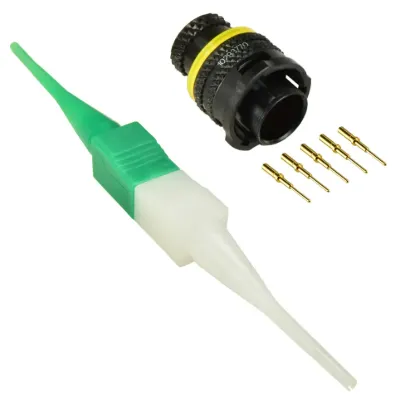

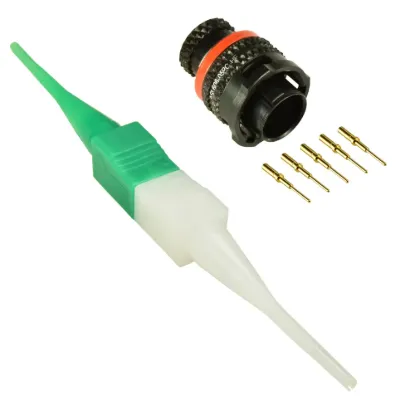

• Plug ASL6: Male connector available in either pin or socket. Mates to ASL1 or ASL0

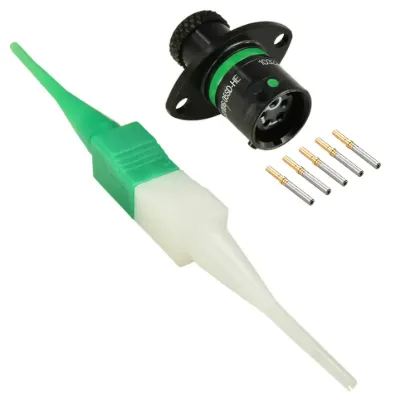

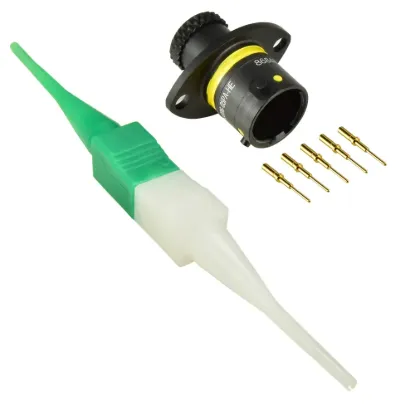

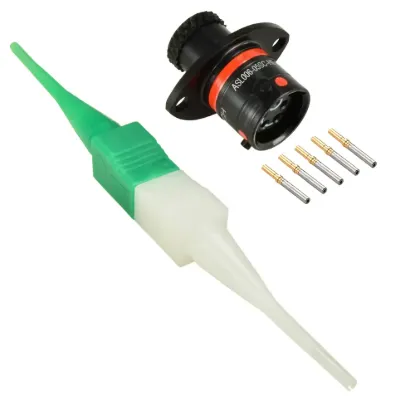

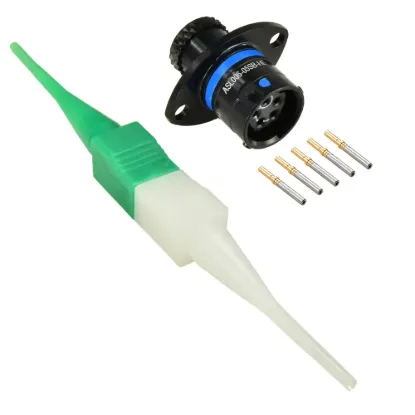

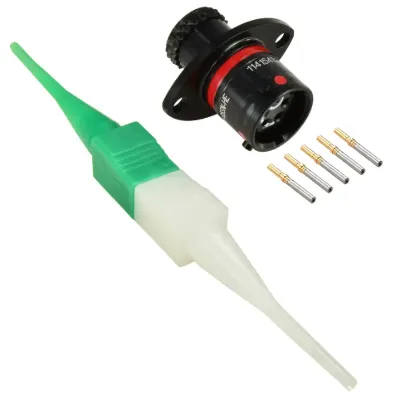

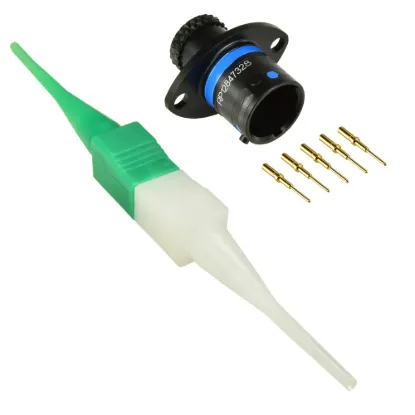

• Flange Receptacle ASL0: Female 2 bolt flanged receptacle available in either pin or socket. Mates to ASU6

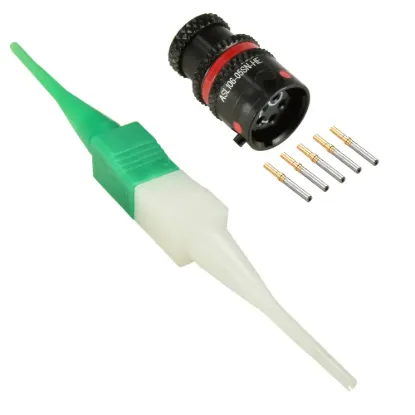

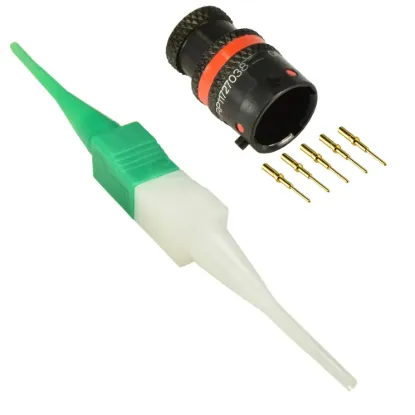

• Inline Receptacle ASL1: Female inline receptacle available in either pin or socket. Mates to ASL6

Keyway Colors:

• N = Red
• A = Yellow
• B = Blue
• C = Orange
• D = Green
• E = Gray
• U = Violet (Universal for test harness only available on plug side only)
