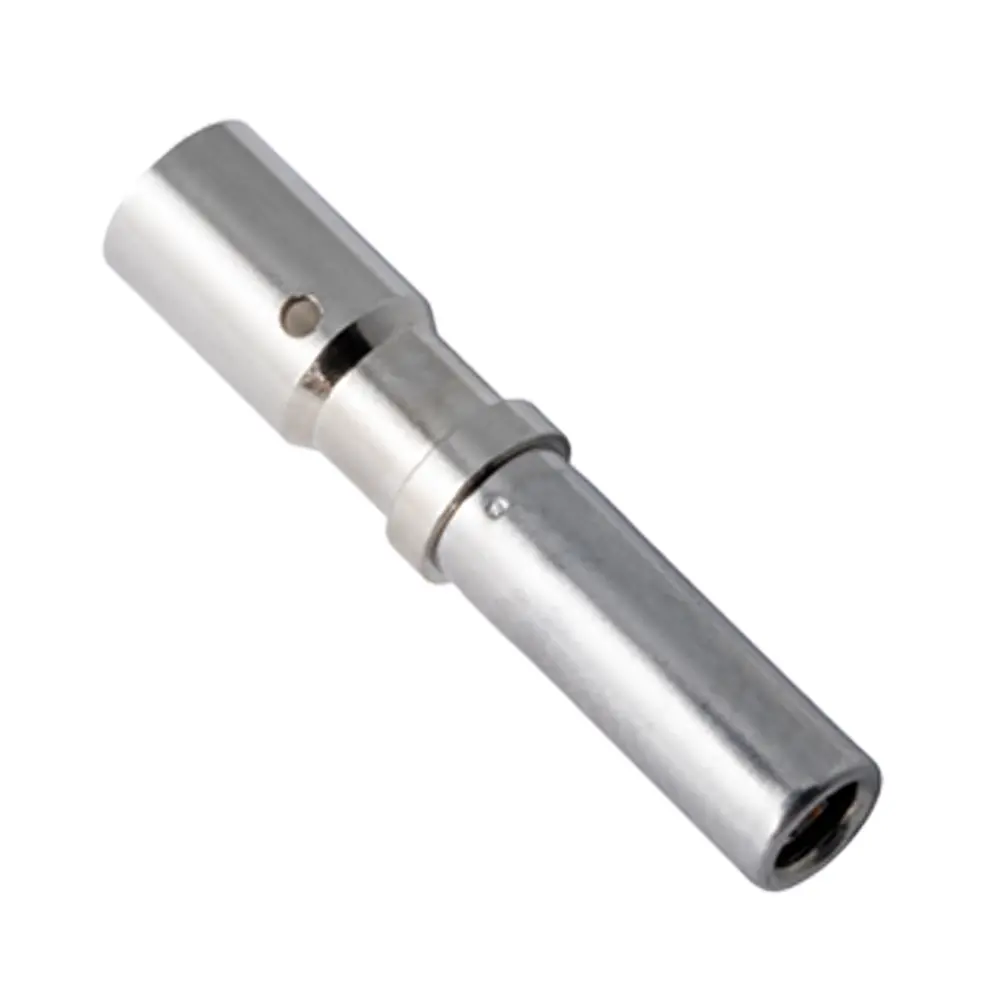

Amphenol AT62-203-12141-10 Solid Socket Contact – Size 12, 10–12 AWG

The Amphenol AT62-203-12141-10 is a solid size 12 socket contact manufactured from a nickel-plated copper alloy, designed for high-current applications.

This contact is rated for 25 amps continuous and accepts 10–12 AWG wire, while maintaining a low contact voltage drop of 60 millivolts at 25 amps. It is RoHS compliant and well suited for demanding automotive, motorsport, and industrial environments.

While the manufacturer datasheet specifies use in ATP Series connectors, ProwireUSA has confirmed proper fitment and functionality of this contact in Deutsch DTP Series connectors. This makes it a suitable solution for applications requiring 10 AWG capability in DTP housings, where a comparable TE Connectivity contact is not available.

The mating terminal for this contact is Amphenol part number AT60-204-12141-10.

Crimp Tool Recommendations

• 18860 Crimp Tool (Recommended): The 18860 crimp tool is recommended for this contact. Please note: the rear collar of the tool must be adjusted slightly to properly locate the contact in the correct position prior to crimping.
• HDT-48-00 Crimp Tool – Not compatible with this contact.

Compatibility Note: Manufacturer documentation lists this contact for ATP Series use; however, ProwireUSA has verified compatibility with DTP Series connectors based on internal testing and application use.

Key Features

• Solid socket contact, size 12
• 25 amp continuous current rating
• Accepts 10–12 AWG wire
• Nickel-plated copper alloy construction
• Low contact resistance (60 mV drop @ 25A)
• RoHS compliant
• ProwireUSA-verified fitment in Deutsch DTP Series connectors
• Mating terminal: AT60-204-12141-10
• Fits both DTP06-XX and ATP06-XX housings

Specifications

• Part Number: AT62-203-12141-10
• Contact Size: 12
• Wire Range: 10–12 AWG
• Current Rating: 25 A
• Plating: Nickel
• Material: Copper alloy
• Manufacturer: Amphenol
