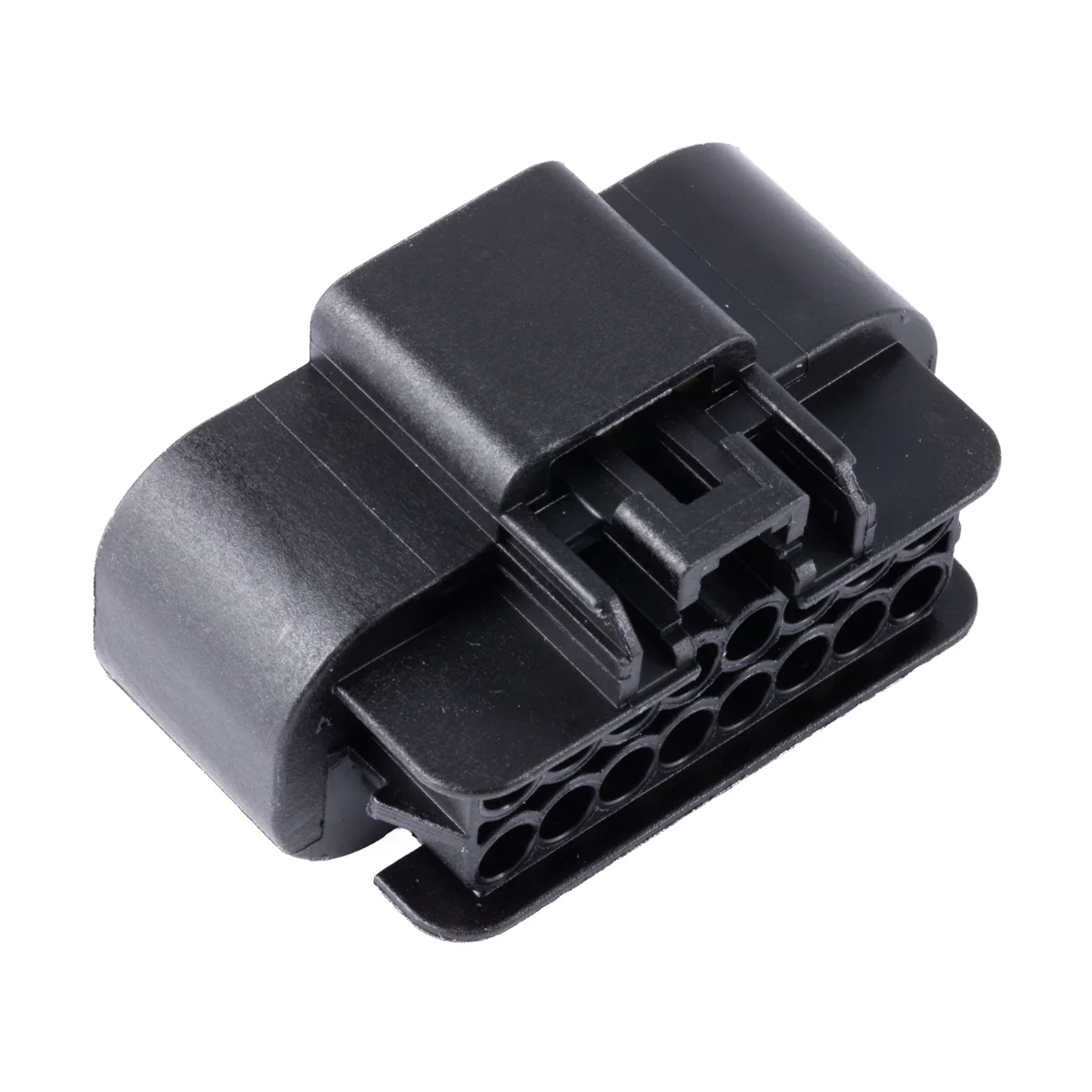

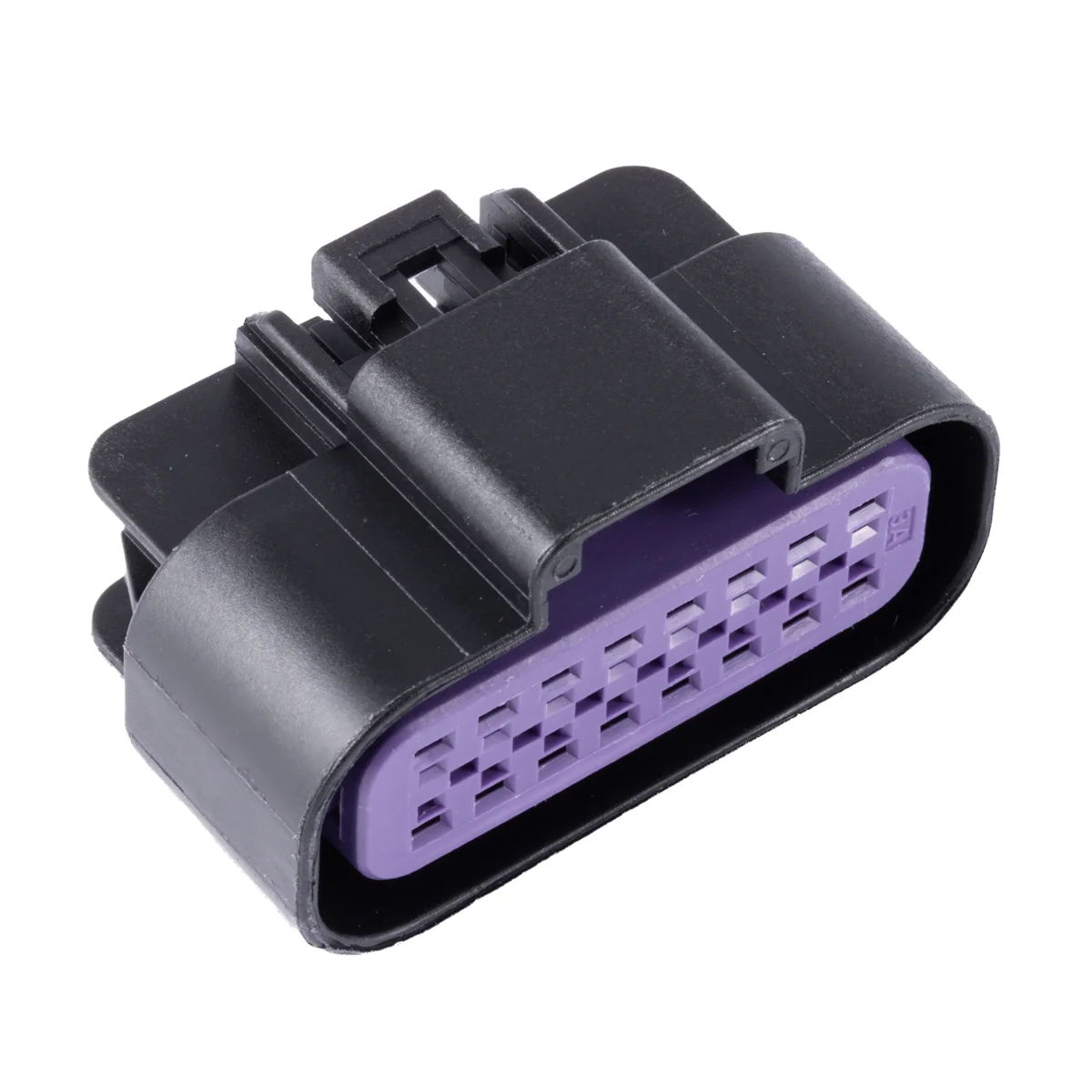

15326863 16-way female plug housing. 15326863 is compatible with all GT150 Series sealed female terminals. This connector housing requires female terminals, wire seals, and a TPA (all listed below).
You can now configure GT150 Series connectors using our GT150 Series Kit Builder Tool
To purchase a master kit, also known as a shop kit, please visit our Master Kits Page
15326863 Details
- Wire Range: 22–16 AWG (0.35–1.0 mm²)
- Number of Cavities: 16
- Gender: female (plug with female terminals)
- Housing Color: Black
- Terminals are rated for 15 amps each
- RoHS Compliant
- Certified to J2030 and USCAR
- Temperature Range: -40°C ~ +125°C
- Overall Width: 1.996 (50.70)
- Overall Length: 1.154 (29.30)
- Overall Height: 1.110 (28.20)
Notes
- Please refer to the Mating Connector, Related Items, and Crimp Tools tabs to purchase the mating connector, heat shrink boots, and accessories.
